Trunnion Ball Valve for sale

Trunnion Ball Valve for sale

    Unit Price: 95 USD
    Min. Order: 5 Piece/Pieces
    Packaging: Frame wooden box with Foam Pack
    Productivity: 500 Tons Per Month
    Brand: Philic
    Transportation: Ocean,Land,Air,Express
    Place of Origin: Wezhou, China
    Supply Ability: 500 Tons per month
    Certificate: ISO 9001
    HS Code: 84818040
    Port: Ningbo,Shanghai,Wenzhou

Basic Info

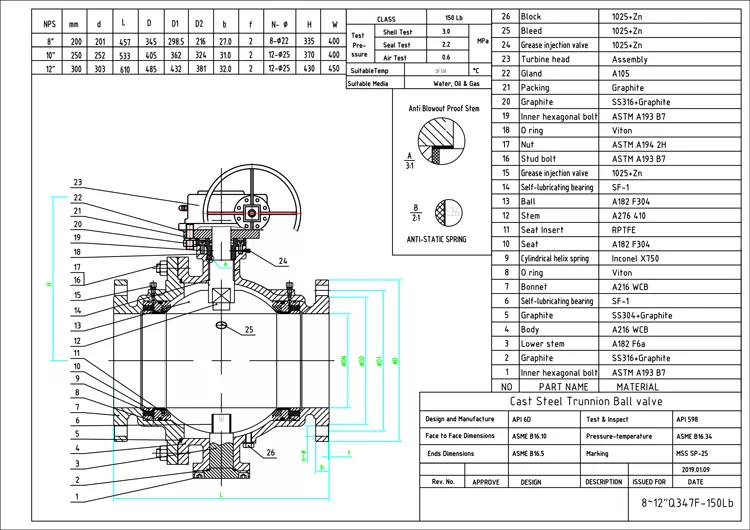

Model No.: Q347F-150Lb

Product Description


Trunnion ball valve Overview


# Trunnion Ball Valve Features:


1) Anti-fire safe design: API 6FA, API607

2) Anti-static device

The static-conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.

3) Anti-blow out design

4) Free leakage of body Sealed construction

The connective position of valve body and bonnet is double sealed by gasket and O-ring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can’t induce external leakage

5) Low torque in operation

6) Double block&bleed(DBB)

7) Emergency sealing

8) Automatic body cavity relief

When the body pressure going up un-normally as the unstable factor, the trunnion ball valve downstream seat will be pushed by un-normal pressure, and the release the un-normally pressure automatically, it doesn’t damage to the sealing of upstream seat.

9) The valve structure can be 2 pieces or 3 pieces.


# Description:


Temperature Range: -20°C to 190°C Maximum
Working Medium: Water, Oil, Gas, Acid, etc
Design: API 6D/API 608; DIN3357; EN 13709; BS5351; JIS 2071
Inspection&Testing: API 598/API 6D; DIN 3230; EN 12266; BS5146; JIS B2003

Face to Face:ASME B16.10; DIN 3202; EN 558; BS2080; JIS B200


SIZE
WORM GEAR
Speed ratio
Input torque
Output torque
Screw
Flat key
Shaft hole
DN80-100
3#
42-:1
80
750
4-M10*35L
4K16
DN125-150
3#
42-:1
80
750
4-M10*35L
4K23
DN200A
4#
43-:1
130
1400
4-M12*32L
10*40L
ɸ35
DN250A
5#
54-:1
130
1755
4-M16*40L
12*40L
ɸ40
DN300A
7#
78-:1
195
3750
8-M16×45L
14*40L
ɸ50
DN350A
S7-50
555-:1
140
7000
8-M16×45L
14*40L
ɸ50
DN400A
S7-60
555-:1
140
7000
8-M16×45L
18x70L
ɸ60
DN450A
S7-60
555-:1
140
7000
8-M16×45L
18x70L
ɸ60
DN500A
DGAB275
275-:1
110
8500
8-M20×50L
20×80L
ɸ70
Trunnion ball valve description
