65QV-SP Vertical type Centrifugal Sump Pump
| Payment Type: | L/C,T/T |
|---|---|
| Terms of Trade: | FOB,CFR,CIF |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 15 Days |
| Packaging: | Export wood cases |
|---|---|
| Productivity: | 500 sets / month |
| Brand: | Naipu |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | Shijiazhuang, China |
| Supply Ability: | 500 sets / month |
| Certificate: | CE, ISO9001 |
| HS Code: | 8413910000 |
| Port: | Tianjin,Qingdao,Shanghai |
Basic Info
Model No.: 65QV-SP
Product Description

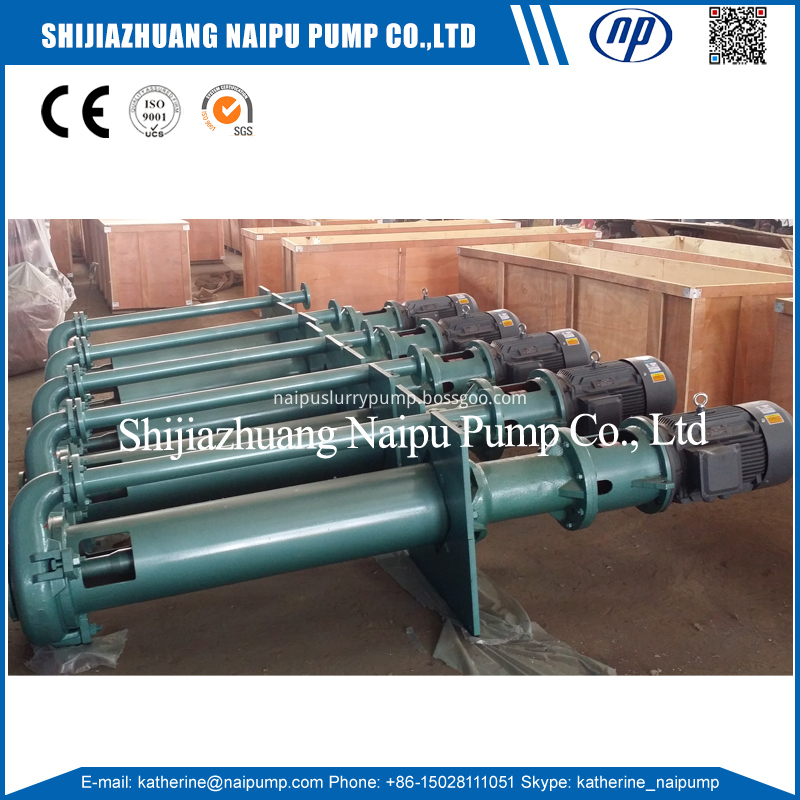

65QV-SP Vertical type Centrifugal Sump Pump
High Chrome Vertical Pump selects the optimum combination of materials for maximum resistance to wear in virtually any industrial application. Vertical Submerged Pump including those demanding both abrasion and corrosion resistance and where larger particles or high density slurries are encountered. Abrasive Slurry Pump, SP Metal Vertical Slurry Pumps no need water seal. Cr27% 65QV Sump pump used for semi-submersible. 65qvsp vertical pump has long shaft suction under water. Many kinds of material selection sump pump. Abrasive Slurry Pump has longer term service. Sump Pump Spare Parts replaceable with standard pumps. Shijiazhuang Naipu Slurry Pump has own casting plant located in Hebei, China.
• Abrasion resistant A05 Ultrachrome® alloy.
• Abrasion/corrosion-resistant A49 Ultrachrome® alloy.
• Corrosion-resistant stainless steels.
• Natural and synthetic elastomers.
Vertical Submerged Pump Advantages
Less wear, less corrosion.
Wetted components are available in a wide range of alloys and elastomers.
No submerged bearing failures.
The robust cantilever shaft avoids the need for lower submerged bearings.
No shaft sealing problems.
The vertical cantilever design requires no shaft seal.
No priming required.
The top and bottom inlet design is ideally suited for [snore" conditions.
Less risk of blocking.
Zero ancillary water costs.
The vertical cantilever design with no gland or submerged bearings avoids the need for expensive gland or bearing flushing water.
NP-SP Vertical Slurry Pumps Performance Parameters
| Type | Allowable Max. Power | Range Of Performance | Impeller | |||||
| (Kw) | Capacity | Head | Speed | Max Efficiency | No. of Vanes | Diameter | ||
| | M3/hr | L/S | m | rpm | % | mm | ||
| 40 PV-SP | 15 | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 5 | 188 |
| 65 QV-SP | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 5 | 280 |
| 100 RV-SP | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 5 | 370 |
| 150 SV-SP | 110 | 108-479.16 | 30-133.1 | 8.5-40 | 500-1000 | 52 | 5 | 450 |
| 200 SV-SP | 110 | 189-891 | 152.5-247.5 | 6.5-37 | 400-850 | 64 | 5 | 520 |
| 250 TV-SP | 200 | 261-1089 | 72.5-302.5 | 7.5-33.5 | 400-750 | 60 | 5 | 575 |
| 300 TV-SP | 200 | 288-1267 | 80-352 | 6.5-33 | 350-700 | 50 | 5 | 610 |
| 40 PV-SPR | 15 | 17.28-39.6 | 4.8-11 | 4--26 | 1000-2200 | 40 | 5 | 188 |
| 65 QV-SPR | 30 | 22.5-105 | 6.25-29.15 | 5.5-30.5 | 700-1500 | 51 | 5 | 280 |
| 100 RV-SPR | 75 | 64.8-285 | 18-79.2 | 7.5-36 | 600-1200 | 62 | 5 | 370 |
SP Abrasive Slurry Pump PartS

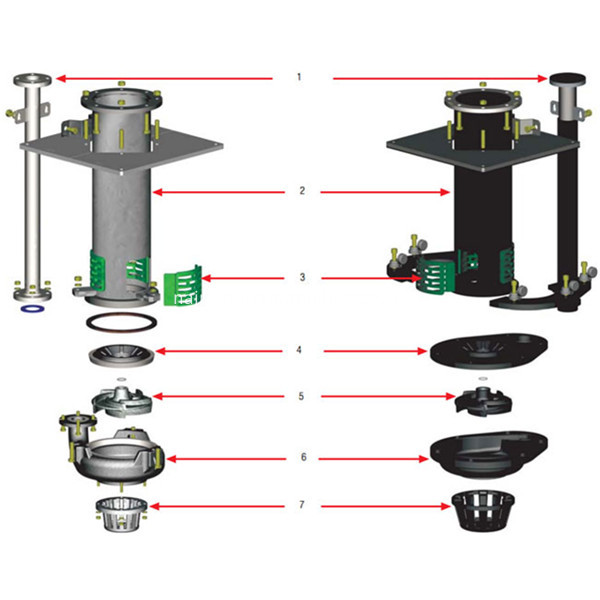

Sump Pump Main Part Number at the Drawing
| 1. Discharge Pipe 2. Column 3. Strainer 4. Back Liner | 5. Impeller 6. Pump Casing 7. Lower Strainer |
Vertical Slurry Pump Part Code No.: SPR65116L, QVR65019, QVR65154, SPR65322, QVR65073, SPR65092, SPR65206A, SPR65041...
Naipu Pump Service
1. OEM service: Produce the pump and spare parts according to client's drawing or sample.
2. Selection service: Help customers select the type, size and operating speed of pumps that will perform at the lowest cost.
3. Using service: Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service.
4. Material service: Interchangeable metal design allow best material choice for any application.
5. After-sale service: Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts.
Any question please contact Katherine Hou freely.
Shijiazhuang Naipu Pump Co., Ltd.
Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining. The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities.. Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump. The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries. Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc. We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future. We can develop and produce a range of pumps according to different media situation to meet different duty requirment. There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request. We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
